Instrument
Roland SH-101

Manufacturer
Roland

Released
1982

Type
Monophonic analogue synthesizer with built-in sequencer

Voices
1

Production
1982–1986

Known For
Stripped-back design, intuitive sequencing, and defining bass and lead sounds in early house and techno

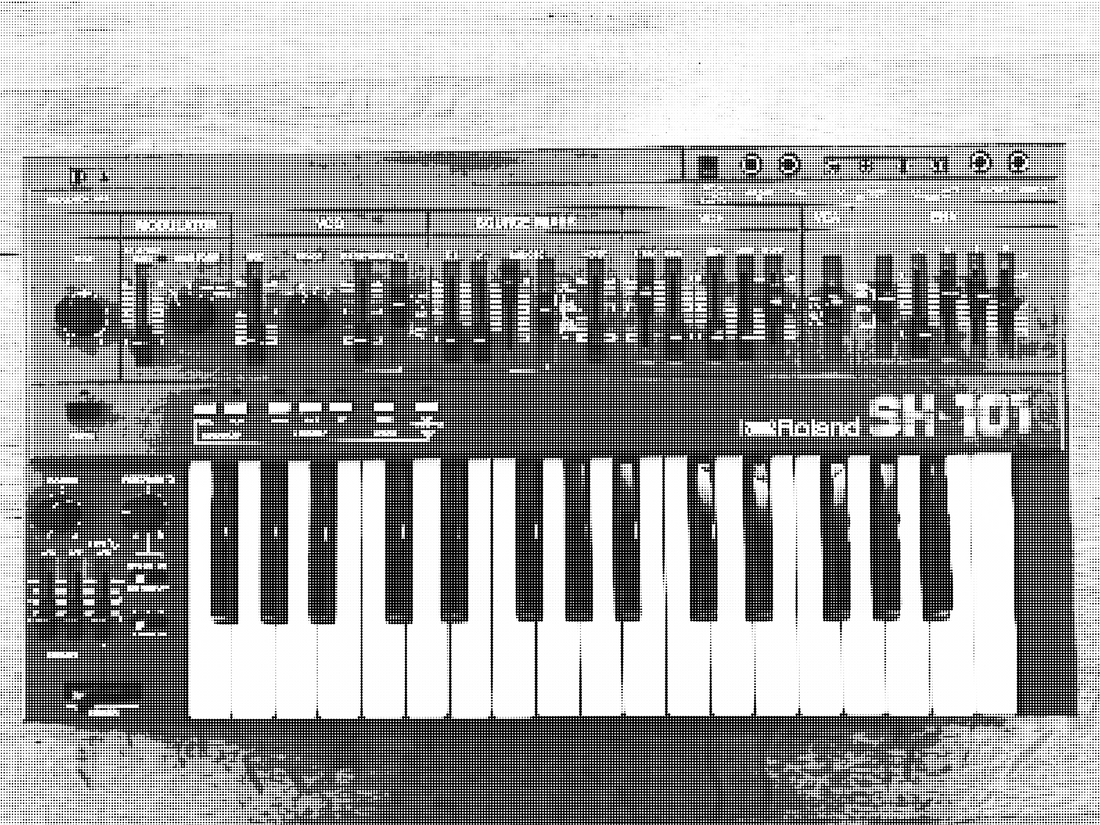

The Roland SH-101 is a study in reduction.

Released in 1982, it arrived during a period when synthesizers were rapidly increasing in complexity. Polyphony was becoming standard, digital control was emerging, and flagship instruments were expanding their sonic possibilities at pace.

The SH-101 moved in the opposite direction.

It removed almost everything that was not essential. There is one oscillator. One filter. One envelope. One LFO. No patch memory. No modulation matrix. No hidden architecture.

What remains is a direct, immediate instrument that connects hand movement to sound with minimal separation.

But perhaps more interesting than what the SH-101 is, is what it was originally expected to be.

Origins

The SH-101 was part of Roland’s SH-series of compact monophonic synthesizers, developed for affordability and accessibility during the early 1980s.

At launch, it was not positioned as a standalone creative centrepiece for electronic composition. Instead, it was marketed as an add-on instrument for home keyboard players — a compact voice that could sit on top of existing organs or consumer keyboards.

Advertising and promotional imagery from the period often placed the SH-101 in domestic performance contexts: stacked on top of home organs, paired with rhythm units, and used by solo performers in “one-person band” setups.

In this framing, the synthesizer was not the main instrument.

It was an extension.

A secondary colour added to an already complete musical system.

Roland were effectively selling it as part of a broader home entertainment ecosystem alongside rhythm machines and accompaniment keyboards, rather than as a professional studio instrument.

This original context would later be almost completely inverted.

Anatomy

At its core, the SH-101 is built around a single voltage-controlled oscillator capable of producing saw, square and pulse waveforms.

This feeds into a resonant low-pass filter that defines much of its sonic character. The filter can be driven into self-oscillation, allowing it to function as a tone source in its own right.

A single envelope generator shapes both amplitude and filter response, while a low-frequency oscillator provides basic modulation options such as vibrato and filter movement.

There is no hidden complexity.

Every function is exposed directly on the panel.

What distinguishes the SH-101 from many other simple synthesizers is its integrated step sequencer and arpeggiator. These allow melodic patterns to be programmed internally, turning the instrument into a self-contained pattern generator.

This combination of synthesis and sequencing would later become central to its cultural identity.

What Made It Different

The SH-101’s significance lies in its lack of ambition in the traditional sense.

Where many synthesizers of its era expanded functionality, the SH-101 restricted it. This restriction created clarity.

Sound design is immediate and physical. There is no abstraction layer between control and result. Every movement of a slider produces an audible change in real time.

More importantly, the instrument blurs the boundary between synthesis and sequencing. Musical ideas can be constructed, stored temporarily, and performed without external equipment.

This made it particularly suited to environments where simplicity and speed were more important than depth or recall.

In Music

The SH-101’s original domestic role gradually gave way to a very different identity.

During the rise of house, techno and acid-adjacent electronic music in the late 1980s and early 1990s, the instrument was rediscovered for its stability, immediacy and strong low-end response.

Its sequencer allowed basslines and patterns to be built quickly and performed in real time. Its architecture encouraged repetition and variation rather than complex programming.

It became an instrument of workflow rather than prestige.

In many electronic music contexts, it functioned less as a synthesizer in the traditional sense and more as a rhythmic compositional tool.

Design Notes

The SH-101’s interface reflects its philosophy of clarity and immediacy.

Controls are arranged in a linear signal-flow layout, making the synthesis process visually understandable even without prior knowledge. Each parameter has a dedicated physical control, reinforcing the connection between gesture and sound.

Its compact size also plays an important role in its identity.

Unlike larger studio instruments, the SH-101 feels personal. It encourages experimentation through proximity and simplicity.

Even the optional shoulder strap — often viewed as a novelty — reinforces its original concept as a portable add-on instrument rather than a fixed studio centrepiece.

Legacy

The SH-101 occupies a unique position in synthesizer history because its cultural role is almost the inverse of its original intent.

It was designed as a supporting instrument for home keyboard setups.

It became a primary voice in electronic music production.

This inversion is not unusual in electronic instrument design. Across many decades, instruments intended for accompaniment, experimentation or budget use have often been repurposed into defining tools of new genres and workflows.

The SH-101 is one of the clearest examples of this phenomenon.

Its simplicity, portability and integrated sequencing have ensured its continued relevance in electronic music, particularly in genres that prioritise rhythm, repetition and immediacy.

Today, it is remembered not as an accessory instrument, but as a foundational tool in electronic music production.

At a Glance

Known For
Simple monophonic design with integrated sequencing and arpeggiation

Signature Features
Single oscillator architecture, resonant filter, built-in step sequencer and arpeggiator

Key Contribution
Originally designed as an add-on instrument, later became a core tool in electronic music composition

Enduring Legacy
A foundational instrument in house and techno, and a benchmark for simplicity, immediacy and performance-oriented design
