Instrument

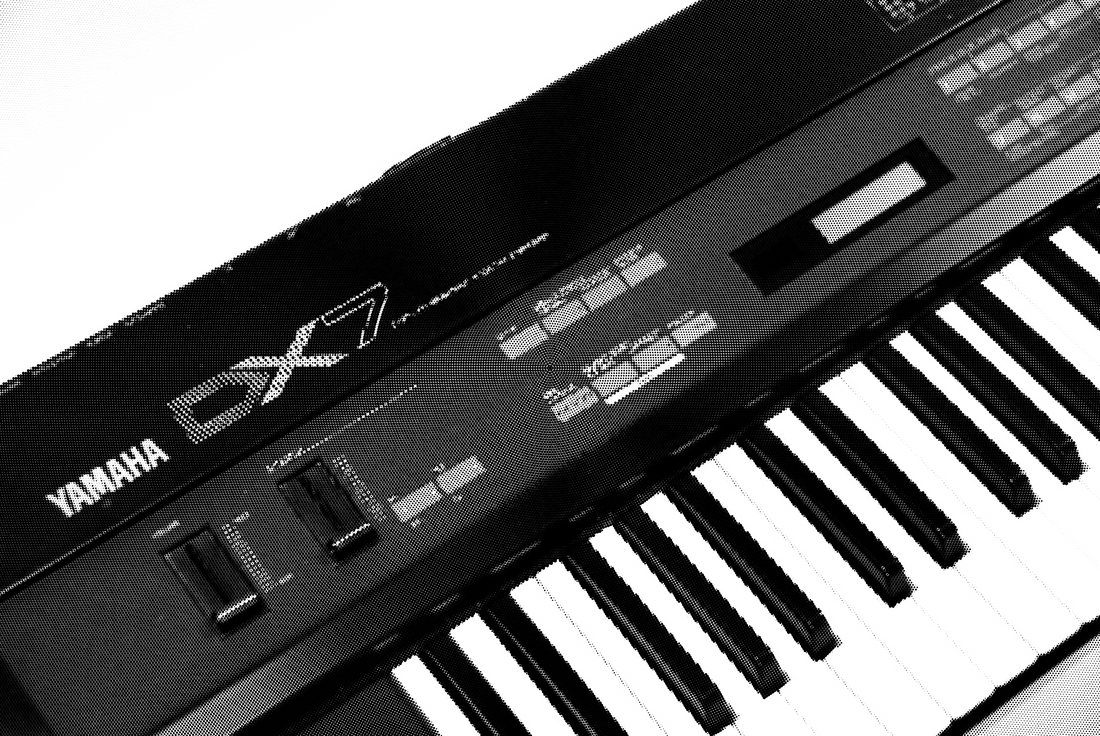

Yamaha DX7

Manufacturer
Yamaha

Released
1983

Type
Digital FM synthesizer

Voices
16

Production
1983–1989

Known For
Popularising FM synthesis and defining the sound of 1980s popular music

Few synthesizers have changed the direction of music as dramatically as the Yamaha DX7.

Released in 1983, the DX7 arrived at a time when analogue synthesis dominated professional music production. Instruments such as the Prophet-5, Minimoog and Roland Juno-60 had established the vocabulary of electronic sound through oscillators, filters and voltage-controlled circuits. The DX7 offered something fundamentally different.

It was digital.

More importantly, it generated sound using frequency modulation synthesis, or FM synthesis, a method capable of producing tones that were difficult or impossible to achieve with traditional analogue instruments.

The result was a synthesizer that sounded unlike anything that had come before it.

Bright electric pianos, metallic bells, crystalline textures and expressive digital timbres quickly became defining sounds of the decade.

The DX7 did not merely join the synthesizer market.

It disrupted it.



Origins

The story of the DX7 begins not at Yamaha, but in academia.

During the 1970s, American engineer and researcher John Chowning developed a method of generating complex sounds through frequency modulation while working at Stanford University. The technique allowed a relatively small amount of computing power to create harmonically rich and dynamically expressive tones. Stanford patented the technology and licensed it to Yamaha, which spent several years developing practical commercial instruments based upon the concept.

By the early 1980s, digital technology had become sufficiently affordable for large-scale production. Yamaha saw an opportunity to bring FM synthesis to a much wider audience.

The DX7 was the result.

It combined advanced digital sound generation with velocity-sensitive keys, patch memory and a comparatively affordable price. At launch, it offered capabilities that previously would have required far more expensive systems.

Within a few years, it became one of the best-selling synthesizers ever produced.



Anatomy

At the heart of the DX7 is a six-operator FM synthesis engine.

Unlike analogue synthesizers, which typically shape harmonically rich waveforms using filters, FM synthesis builds complex sounds by allowing one oscillator to modulate another at audio rates.

In Yamaha terminology, these oscillators are referred to as operators.

The DX7 contains six operators per voice, arranged according to thirty-two predefined algorithms. Each algorithm determines how the operators interact, creating a vast range of possible timbres.

This architecture allowed the DX7 to produce sounds with remarkable clarity and complexity.

Electric pianos, bells, mallet instruments, brass-like tones and evolving digital textures became particular strengths.

The instrument also featured sixteen-note polyphony, velocity sensitivity and extensive patch storage, making it equally suited to performance and studio work.

For many musicians, however, the architecture was difficult to understand.

The same design that made the DX7 powerful also made it notoriously challenging to program.

What Made It Different

The DX7’s significance lies not in a particular sound, but in a particular technology.

For over a decade, synthesizer development had largely revolved around refinements of subtractive synthesis. Manufacturers improved oscillators, filters, memory systems and control surfaces, but the fundamental method of sound generation remained familiar.

The DX7 broke this pattern.

FM synthesis offered a completely different sonic palette.

Its sounds were sharper, brighter and often more dynamic than their analogue counterparts. It excelled at creating percussive attacks, metallic overtones and evolving harmonic structures that felt distinctly modern.

Just as importantly, it arrived at a moment when musicians were looking for new sounds.

The warm pads and resonant filters of the 1970s gave way to the cleaner, more precise production aesthetics of the 1980s.

The DX7 became one of the defining instruments of that transition.

In Music

The DX7 quickly found its way into recording studios across the world.

Its factory presets became almost as famous as the instrument itself. The “E. Piano 1” patch, in particular, appeared on countless recordings throughout the 1980s and remains one of the most recognisable synthesizer sounds ever created.

Artists including Brian Eno, Phil Collins, Whitney Houston, A-ha, Tina Turner and countless others incorporated the DX7 into their productions. Its sounds became deeply embedded within pop, R&B, film scores and emerging digital music workflows.

Unlike some classic synthesizers that became associated with a particular genre, the DX7 appeared almost everywhere.

Its versatility and affordability made it accessible to musicians across an unusually broad range of musical styles.

For much of the decade, it was difficult to listen to contemporary music without hearing a DX7 somewhere in the mix.

Design Notes

The DX7’s design reflects the changing priorities of the early digital era.

Its interface is clean and organised, but markedly different from the knob-per-function layouts of many analogue synthesizers.

Programming relies on a membrane-style control panel, numerical parameter editing and a small display. This approach reduced manufacturing costs while allowing access to a far more complex synthesis engine.

The compromise was usability.

While analogue synthesizers often encouraged experimentation through immediate tactile interaction, the DX7 required planning and technical understanding. Many musicians relied heavily on factory presets rather than creating sounds from scratch.

This tension between power and accessibility became one of the defining characteristics of digital synthesizer design throughout the 1980s.

Legacy

The influence of the DX7 extends far beyond its original production run.

It introduced FM synthesis to mainstream music production, helped accelerate the industry’s transition towards digital instruments and became one of the most commercially successful synthesizers ever manufactured.

Its success also altered the competitive landscape. Throughout the mid-1980s, many analogue synthesizers struggled to compete with the affordability, polyphony and technological sophistication offered by Yamaha’s digital approach.

In hindsight, the DX7 represents more than a successful instrument.

It marks a cultural shift.

The synthesizer was no longer simply an electronic machine designed to imitate or extend traditional instruments. It had become a digital platform capable of generating entirely new sonic identities.

Even today, software instruments, hardware recreations and modern FM synthesizers continue to draw inspiration from the architecture introduced by the DX7.

Its sounds remain unmistakable.

Its impact remains difficult to overstate.

At a Glance

Known For
Popularising FM synthesis and defining much of the sound of 1980s music

Signature Features
Six-operator FM synthesis, velocity-sensitive keyboard and extensive patch memory

Key Contribution
Introduced digital synthesis to a mass audience and transformed mainstream music production

Enduring Legacy
One of the most influential and commercially successful synthesizers ever produced
