Instrument

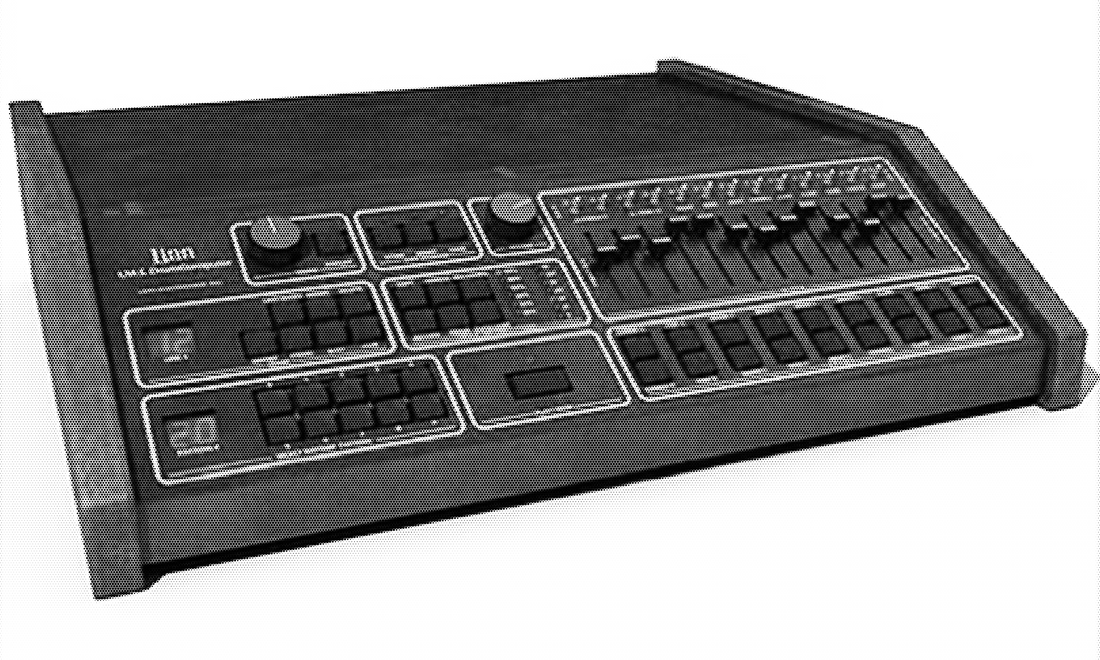

Linn LM-1 Drum Computer

Manufacturer
Linn Electronics

Released
1980

Type
Digital drum machine

Voices
12 sampled drum sounds

Production
1980–1983

Known For
The first commercially successful drum machine to use digital samples of real drums



The Linn LM-1 changed the sound of popular music by answering a simple question:

What if a drum machine used recordings of real drums instead of generating sounds electronically?

Released in 1980 by Linn Electronics, the LM-1 Drum Computer was the first commercially successful drum machine built around digital samples. Rather than synthesising kick drums, snares and hi-hats electronically, it played back recordings of actual percussion instruments stored in memory.

Today, that idea seems obvious.

In 1980, it was revolutionary.

The LM-1 arrived at a moment when musicians were increasingly comfortable with electronic instruments but still wanted the familiarity and impact of acoustic drums. It offered something that had previously been unavailable: programmable rhythm that sounded recognisably human.

In doing so, it helped define the production aesthetic of an entire decade.

Origins

The LM-1 was the creation of Roger Linn, an engineer and musician who believed drum machines could be more expressive than the rigid rhythm boxes of the 1970s.

At the time, most drum machines generated sounds using analogue circuitry. While effective, these sounds often bore only a passing resemblance to real drums.

Linn's solution was radical.

Instead of synthesising percussion sounds, he recorded real drum hits and stored them digitally. Most of the samples were performed by Los Angeles session drummer Art Wood, preserving the dynamics and character of a real drummer within an electronic instrument (the handclaps were recorded by members of Tom Petty and the Heartbreakers). Advances in memory technology had made this just about feasible, though at considerable expense.

The resulting machine was unlike anything on the market.

It was also expensive.

At launch, the LM-1 cost around $5,000—placing it far beyond the reach of most musicians and firmly within the domain of professional studios and established artists.

Anatomy

The LM-1 contains twelve digitally sampled drum sounds, each recorded from real acoustic drums and stored in memory.

These include kick drum, snare, toms, hi-hats, tambourine, handclaps and percussion voices.

Unlike earlier rhythm machines that relied on preset patterns, the LM-1 allowed users to program their own rhythms with a level of flexibility rarely seen at the time.

Individual sounds could be tuned independently, creating variations that extended beyond simple playback.

The machine also introduced features that are now taken for granted, including swing timing and programmable accents.

These capabilities gave performances a more human feel and helped move drum machines away from strict mechanical repetition.

The LM-1 was not attempting to replace drummers.

It was creating a new form of rhythm production altogether.

What Made It Different

The LM-1’s significance lies in its relationship with realism. Earlier drum machines embraced their artificial nature. Their sounds were electronic because they had to be. The LM-1 pursued a different goal.

Its digital samples brought recognisable acoustic drum sounds into a programmable electronic environment. For the first time, producers could combine the precision of a machine with the familiar character of recorded percussion.

This changed expectations across the industry. Drum machines no longer had to sound synthetic – they could sound familiar.

The irony, of course, is that the LM-1 eventually became famous for sounding like itself rather than sounding like real drums.

Its samples, limitations and timing characteristics became an aesthetic identity in their own right.

In Music

The LM-1 rapidly found favour among some of the most influential artists of the 1980s.

Perhaps no musician is more closely associated with the instrument than Prince, who used it extensively throughout his most celebrated recordings. Its distinctive rhythms can be heard across albums that helped define the decade.

The machine was also embraced by artists such as Peter Gabriel, Stevie Wonder and Human League.

By combining sampled drums with emerging synthesizer technologies, these artists created production styles that still feel unmistakably linked to the early 1980s.

The LM-1 became more than a drum machine.

It became part of the sound of modern pop production.

Design Notes

Visually, the LM-1 reflects the transition from analogue instruments to computer-assisted music production. Its interface is functional rather than expressive, prioritising programming and control over performance gestures. The machine feels closer to a workstation than a traditional instrument, which reflects a broader shift taking place throughout the industry.

Electronic music technology was becoming increasingly digital, programmable and data-driven. The LM-1 sits at the beginning of that transformation. Its influence can be seen not only in later drum machines, but in the rise of sequencers, samplers and computer-based production systems.

Legacy

The importance of the LM-1 extends far beyond its relatively short production run. It demonstrated that digital sampling could be practical, desirable and commercially viable. In doing so, it helped pave the way for instruments such as the Fairlight CMI, the E-mu Emulator and countless future sampling technologies.

It also fundamentally changed the expectations placed upon drum machines. After the LM-1, realism became a possibility rather than a limitation, yet its greatest legacy may be its contradiction.

The machine was designed to reproduce real drums more faithfully. Instead, musicians embraced its unique character. Like the TR-808, the LM-1 ultimately became valuable not because it sounded like something else, but because it sounded like itself.

At a Glance

Known For
Introducing sampled drums to mainstream music production

Signature Features
Digitally sampled drum sounds, programmable rhythms and swing timing

Key Contribution
Bridged the gap between acoustic percussion and electronic sequencing

Enduring Legacy
Established digital sampling as a practical foundation for modern music production
